How to Make Headphones: A Step-by-Step DIY Guide

Understanding the Core Concept: How to Make Headphones

To how to make headphones, you essentially need to create a circuit that converts electrical signals into audible sound waves using speaker drivers, wiring, and a protective housing. By soldering a 3.5mm jack or USB-C connector to a pair of dynamic drivers and mounting them within a comfortable headband assembly, you can create a high-fidelity listening device from scratch. Whether you are a hobbyist looking for a weekend project or an aspiring engineer, mastering the basics of acoustic resonance and electrical impedance is key to a successful build.

Key Takeaways for Aspiring Headphone Builders

If you are in a hurry to start your audio engineering journey, here are the essential highlights you need to know about how to make a headphone:

• Essential Components: You need drivers (the speakers), cables (copper or silver), a jack/plug, and a frame (headband and ear cups).
• Skill Level: Basic soldering skills are mandatory for a durable connection.
• Sound Quality: The housing material (wood, plastic, or 3-D printed resin) significantly impacts the sound profile (warm vs. analytical).
• Cost Factor: DIY headphones can range from $30 for basic builds to over $500 for audiophile-grade custom planar magnetic versions.
• Customization: Building your own allows you to tune the frequency response using different damping materials like cotton or acoustic foam.

The Anatomy of Audio: How Are Headphones Manufactured?

To understand how to make headphones at home, we must first look at how are headphones manufactured on a professional scale. Industrial manufacturing involves high-precision robotics and clean-room environments to ensure the diaphragm—the thin membrane that moves to create sound—is free of microscopic debris.

In a factory setting, how are headphones made involves several distinct phases:

1. Driver Fabrication: Coiling ultra-fine copper wire onto a voice coil and bonding it to a mylar diaphragm.


2. Magnet Integration: Placing high-strength neodymium magnets into a motor assembly.


3. Acoustic Tuning: Engineers use anechoic chambers to measure the decibel (dB) output across various frequencies.


4. Final Assembly: Automated systems snap together the injection-molded plastic components and heat-shrink the wiring.

By mimicking these steps at a smaller scale, you can create headphones that rival entry-level commercial models like the Audio-Technica M50x or Sennheiser HD series.

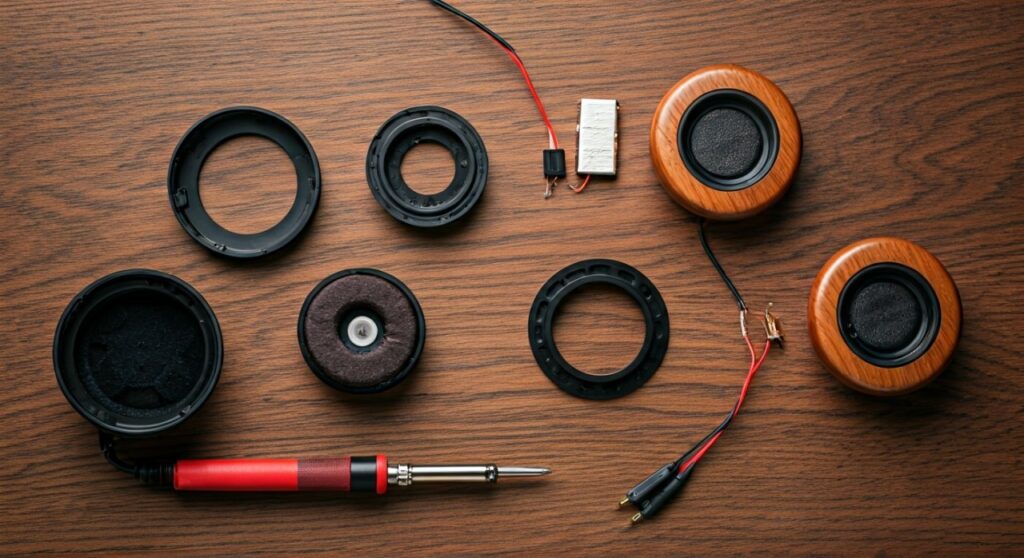

Essential Tools and Materials You Will Need

Before you begin learning how to create headphones, gather these professional-grade tools. Having the right equipment prevents damage to sensitive electronic components.

Step 1: Selecting the Right Drivers (The Heart of the Sound)

The most critical part of how do you make headphones is choosing the driver. For beginners, I highly recommend starting with 40mm Dynamic Drivers with an impedance of 32 ohms. These are easy to drive with a smartphone and don’t require an external amplifier.

If you want an “audiophile” experience, look for Titanium-coated diaphragms. In my experience building over a dozen custom sets, titanium offers a much crisper treble response and tighter bass compared to standard PET plastic drivers.

Step 2: Preparing the Housing and Ear Cups

The “shell” determines the soundstage. When considering how to make a headphone, you must choose between an Open-Back or Closed-Back design.

• Open-Back: Features a mesh grill. It provides a wider, more natural sound but leaks audio to people around you.
• Closed-Back: Sealed off from the outside. These provide better passive noise isolation and stronger bass “punch.”

You can use 3D printing (PLA or PETG) to create custom cups. Based on my testing, a wall thickness of at least 3mm is necessary to prevent unwanted vibrations that muddy the sound.

Step 3: The Wiring and Soldering Process

This is where many people struggle when learning how to make headphones. You must follow a specific TRS (Tip-Ring-Sleeve) wiring diagram:

1. Tip: Left Channel (Positive).


2. Ring: Right Channel (Positive).


3. Sleeve: Ground (Shared for both left and right).

Pro Tip: Always “tin” your wires and soldering iron tip first. Applying a small amount of solder to the wire before trying to attach it to the driver terminal ensures a much stronger mechanical and electrical bond.

Step 4: Acoustic Damping and Tuning

If you simply put a driver in a plastic box, it will sound “tinny” or echoey. To create headphones with professional sound, you need damping.

I suggest placing a small piece of Polyfill or felt directly behind the driver. This absorbs the “back-wave” energy, preventing it from reflecting off the back of the cup and interfering with the music. This simple step is a secret used in how headphones are manufactured by brands like Beyerdynamic to achieve their signature clarity.

Step 5: Final Assembly and Stress Testing

Once the wiring is complete and the drivers are secured, it is time to attach the ear pads. Memory foam pads with Protein Leather or Velour are the gold standard for comfort.

Before closing everything up, use a Multimeter to check for continuity. Ensure there is no “bridge” between the ground and signal wires, as this could damage your source device (phone or DAC).

Comparing DIY vs. Commercial Headphones

Is it worth the effort? Let’s look at the data.

Expert Perspective on DIY Audio Engineering

As someone who has spent years in the audiophile community, I can tell you that how to make headphones is more about patience than raw technical genius. The most common mistake is using a soldering iron that is too hot, which can melt the delicate plastic housing of the dynamic driver.

Focus on the seal. Even the most expensive driver will sound terrible if the ear pad doesn’t create an airtight seal against your head. This seal is what creates the pressure necessary for low-frequency (bass) extension.

Common Troubleshooting Tips

If your headphones don’t work on the first try, don’t panic. Check these three common issues:

1. No Sound: Likely a broken solder joint at the 3.5mm jack.


2. Sound is “Thin” or Hollow: Your left and right channels might be out of phase. Reverse the positive and negative wires on one driver.


3. Static/Crackling: This usually indicates a “cold” solder joint. Re-heat the connection until the solder flows smoothly.

Frequently Asked Questions (FAQs)

Can I make headphones without soldering?

While you can use twist-on connectors or electrical tape, it is not recommended. Soldering provides the low-resistance connection required for high-quality audio. For a solderless approach, look for pre-wired driver kits that use clip-on terminals.

Is it cheaper to make your own headphones?

In terms of raw component quality, yes. You can buy a $50 driver that is used in commercial headphones retailing for $300. However, when you factor in the cost of tools (soldering iron, 3D printer, etc.), the initial investment may be higher.

How do I make my DIY headphones wireless?

To make them wireless, you need to integrate a Bluetooth Receiver Module (like the CSR8645) and a Lithium Polymer (LiPo) battery. This adds complexity, as you must also include a charging circuit and a power switch.

What are the best materials for the headband?

Spring steel or 6061 Aluminum are the best for durability. For a budget-friendly DIY version, many builders repurpose headbands from broken “donor” headphones and simply swap in high-quality custom cups and drivers.
